Gas Services for Sheffield Industry and Commerce
Sheffield's industry has changed, but it has not gone. Forges, heat treatment shops, foundries, toolmakers and precision engineers still line the Lower Don Valley through Attercliffe, Darnall and Tinsley. Newer firms have settled at the business park by the old airport and on the Advanced Manufacturing Park just over the boundary in Rotherham.
Much of this work runs on gas. Furnaces, ovens, burners and boilers draw large volumes through steel pipework that is bigger and longer than anything found in an office or a shop. Volumes are larger, purge times are longer and the planning matters more.
What Do Our Industrial and Commercial Gas Engineers Do?
Industrial Gas Pipework
Screwed, welded and flanged steel pipework for process plant, sized to hold pressure at full load. See commercial gas installation.
Strength and Tightness Testing
New steel pipework is strength tested to prove welds, flanges and fittings, then tightness tested to prove it is gas tight. Test pressures and durations come from IGEM/UP/1.
Gas Purging and Commissioning
Direct and nitrogen purging, followed by working pressure checks with the plant running. Safety shut off valves and low pressure switches are proved before handover. See gas testing and purging.
Decommissioning Redundant Pipework
Old works collect dead legs. We isolate them at source, purge them clear, cut back and cap, and update the drawings.
Live Connections
Where a supply cannot be interrupted, gas hot tapping allows a new branch to be connected to a live main. It is assessed case by case.
Heating, Catering and Certificates
Warm air and radiant heating, kitchen pipework and annual gas safety inspections.
Why Is Nitrogen Purging Used on Industrial Pipework?

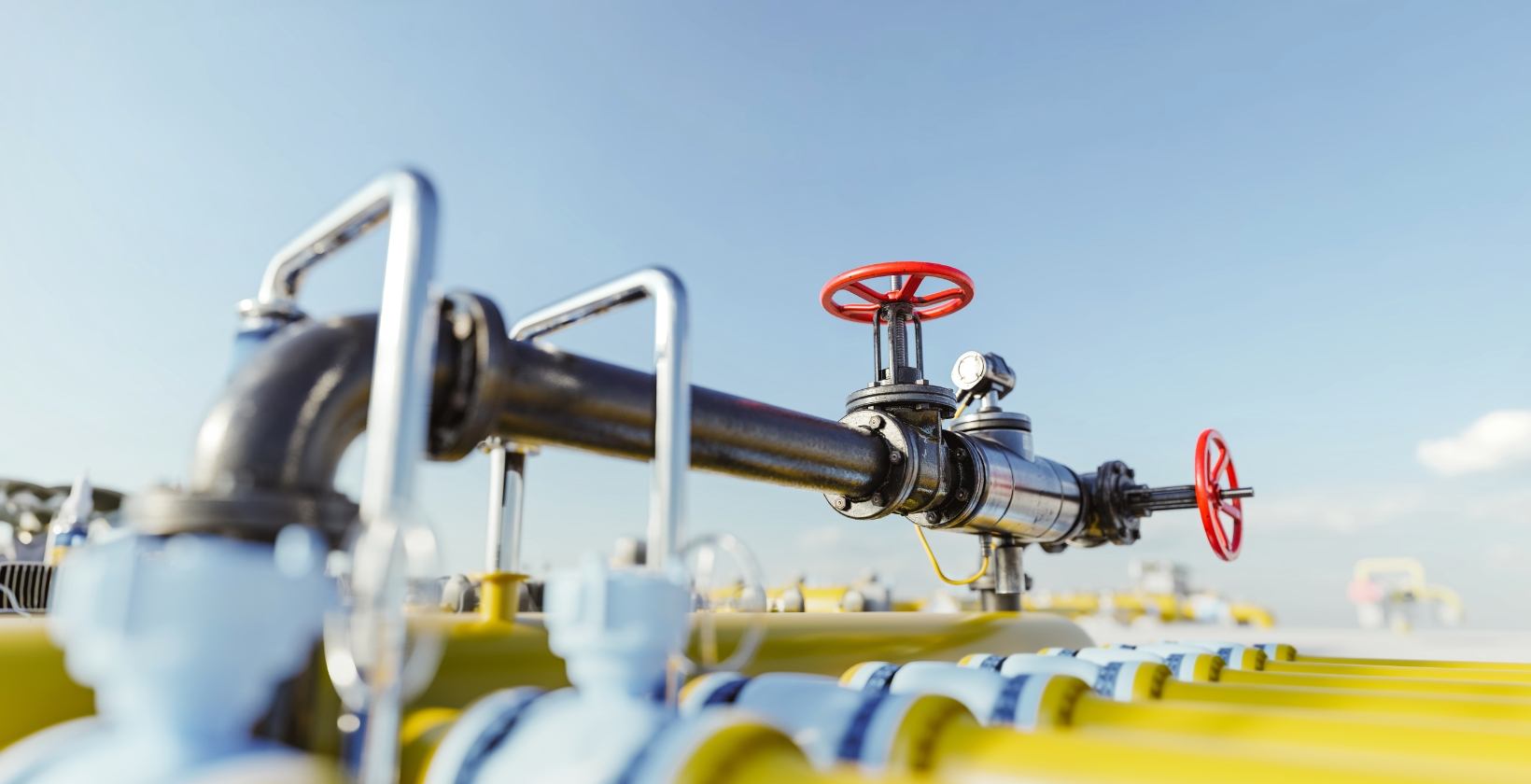

When pipework is purged directly, gas and air meet inside the pipe. In a short length of small pipe, that mixing zone is tiny and is quickly blown through. In a long, large diameter factory main, it can be a substantial volume of flammable gas.
Nitrogen removes that risk. The pipework is first filled with nitrogen, which will not burn. Gas then displaces the nitrogen when commissioning, or air displaces it when decommissioning. At no point do fuel gas and air meet inside the pipe.
Purge volumes are calculated from the pipe sizes and lengths, flow is controlled, and readings are taken at the vent until the purge is proved complete.
Why Manufacturers Choose Us
A furnace that runs around the clock cannot be shut down casually. Neither can a plating line or a bakery oven. We plan gas work around your production, not the other way round.

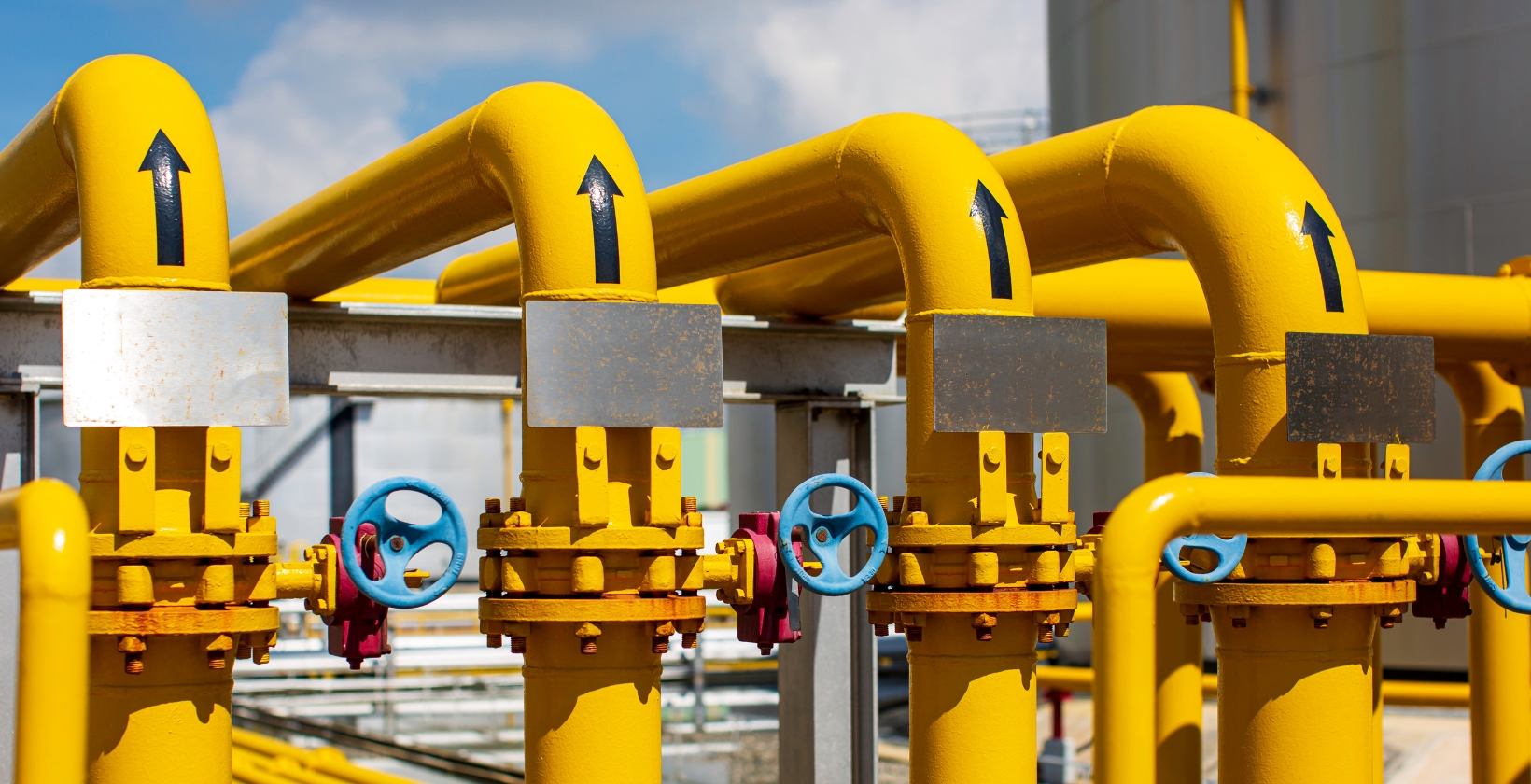

Many Sheffield manufacturers carry out gas alterations during planned shutdowns at Christmas, Easter or in the summer. Agreeing the scope well ahead means materials and labour are in place when the window opens. Well placed isolation valves also let one part of a site be worked on while the rest keeps running.
We work only on commercial and industrial systems, we are Gas Safe registered under number 568617, and you receive records of each test and purge. Quotes are free, and for larger projects we survey the site first.
Beyond Heavy Industry: Who We Work With
We work with owners, engineering managers, contractors and facilities teams across the city.
Forges, Foundries and Engineers
Process gas for furnaces and burners in the Lower Don Valley, with work timed to shutdowns.
Converted Works and Hospitality
Kelham Island and Neepsend, where old cutlery and steel works now hold restaurants, breweries, bakeries and offices.
Universities, Hospitals and Schools
Central plant, laboratories and kitchens at two universities and two large hospitals, plus schools and colleges across the city.
Retail, Leisure and Trade Units
Units around Meadowhall and the city centre, and warehouses at Chapeltown, Ecclesfield and Holbrook.
Gas Emergencies and Urgent Repairs
If you suspect a gas escape, call the National Gas Emergency Service on 0800 111 999. They will make the supply safe but will not repair your pipework.
Our emergency repair engineers are available 24/7. We trace and fix the fault, then test and purge the affected section so that production can restart. Tell us what plant is affected and whether production has stopped, so we can bring the right materials.
Testing Standards, Councils and the Gas Network
IGEM/UP/1 is the standard for strength testing, tightness testing and direct purging on industrial and commercial installations. It requires a written procedure for each purge. The Gas Safety (Installation and Use) Regulations 1998 set the duty on employers to keep pipework and appliances safe. Commercial kitchens in converted works buildings should meet BS 6173, including an interlock between the gas and the extraction.
Cadent operates the gas distribution network in South Yorkshire. Mains, services and the emergency control valve belong to the network, and new or upgraded supplies are requested from Cadent or your supplier.
Sheffield City Council is the highway authority within the city. Rotherham, Barnsley and Doncaster councils cover their own districts, and Derbyshire County Council covers Dronfield and Chesterfield. Most industrial pipework is inside the site boundary, where highway consent does not arise.
Areas We Cover Around Sheffield
The S postcode area is wide, and we cover all of it, with Sheffield at its centre. That includes the city districts from S1 to S17, Mosborough and Halfway (S20), Chapeltown and Ecclesfield (S35) and Stocksbridge (S36).
It also takes in Dronfield (S18), Chesterfield (S40 to S45), Rotherham (S60 to S66), Barnsley (S70 to S75) and Worksop (S80 and S81). Beyond that we cover Doncaster and the rest of the UK. Coverage is not limited to the city boundary.
Planning a Shutdown, an Upgrade or a Closure?
Manufacturers, contractors and facilities managers in Sheffield can call 08000 855 077 or send an enquiry to talk through the gas side of a project. The earlier we see the scope, the easier it is to fit the work into your production plan. Quotes are free and without obligation.
